How do I set or edit a site's geofence boundary?

Open the site's Geofence Map tab, drag points to reshape the existing geofence, or select Reset Map to clear it and draw a new one, then save your changes.

At a glance

For	Company administrators & site managers
Platform	Web Portal
Applies to	All regions
Time to Read	About 2 minutes
You'll understand	• Adjust an existing geofence's shape. • clear a geofence from scratch. • Save your changes.

Before you begin

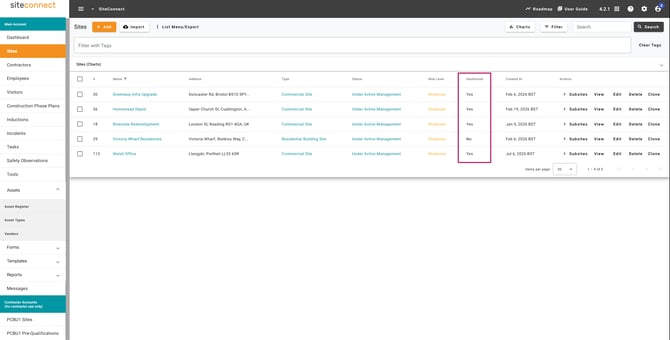

The site must already have a geofence — check that Geofenced shows Yes for it in the Sites list.

Step-by-step guide

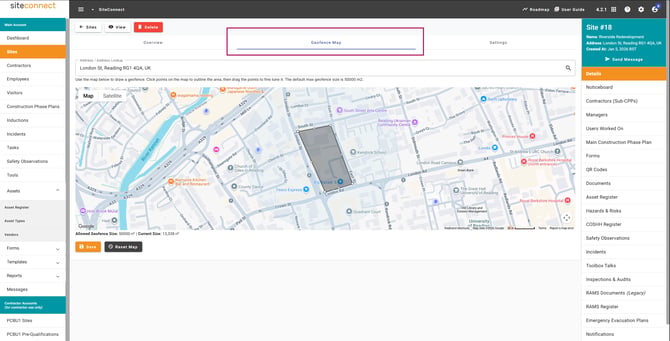

Step 1: Open the site's Geofence Map

Go to Sites, select the site, then select the Geofence Map tab.

Step 2: Adjust the shape

Drag any point to move it, or drag the midpoint between two points to add a new one. Check Current Size against Allowed Geofence Size below the map.

Note - the default maximum geofence size is 50,000 square metres. This limit is set per site and can only be raised by SiteConnect support

Step 3: Start over, if needed

If you want to clear the geofence completely, select Reset Map, then click at least three points on the map to draw a new boundary and select Finish Drawing.

Step 4: Save your changes

Select Save.

Result

You'll know the change has been saved when SiteConnect confirms the geofence map was updated.

Scope

This article covers adjusting or redrawing an existing geofence. To draw a geofence for the first time, see How do I enable geofencing for a site?
